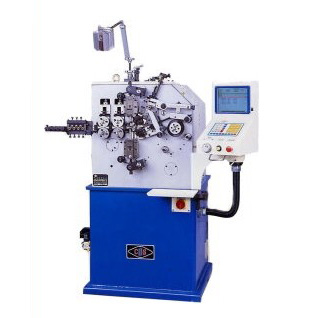

CS CNC-26 2軸壓簧機

商品型號: CS CNC-26

VIDEO:

TORSION DEVICE - CS-26T

CS-26T is equipped with flexible coiling finger that allows you to produce torsion spring with left or right hand coiling. Angle sensor assists us to maintain accurate torsion angle. We can also utilize CS-26T to produce safety-end springs, magazine springs, simple wire-forming parts and related products.

商品特點:

CS CNC-26 is able to produce various kinds of springs such as compression springs, oil seal springs, taper-srpings and battery springs. We can utilize optional equipment -- the torsion device together with an angle sensor and support cylinder to produce torsion springs and related products. Computer controls wire feeding and machine main axis (X). X axis is able to move forward and backward without limits. It is an advantage for setting-up non-symmetrical or symmetrical springs and multiple-taper springs. We can change program contents while machine is running. Maximum memory storage is up to 150 programs.

Model	CNC-26
Wire Diameter	1.0~2.6 mm
Max. O.D.	50 mm
Max. Production Speed	300 pcs/min
Feed Length	Unlimited
Feed Speed	135 m/min
D/d	4
Feed (Y) Axis (kw)	4.5 kw
Cam(X) Axis (kw)	3.5 kw
Monitor Display	Color / Chinese / English
Max. Value	X:359.9° Y:9999.9mm
Min. Value	X:0.1° Y:0.01mm
Memory	999 Programs Max 150 Lines for each program
Machine Dimensions	142 x 100 x173 cm
Wooden Case Dimensions	194 x 133 x194 cm
Machine Weights	950kgs
Gross Weights	1150 kgs
Power	220V 3P 50/60Hz
