Wire Range: 2.3mm - 5.0mm

Specification

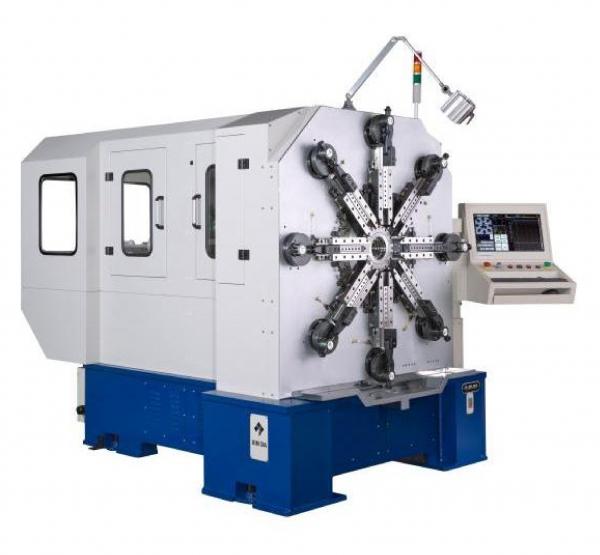

Model		XD 1350W
Wire Diameter		2.3~5.0mm
Maximum Wire Feed Value		99999.99mm
Minimum Wire Feed Value		0.01mm
Wire Feed Speed		0~60m/min
Maximum Slide Movement Value		16000
Minimum Slide Movement Value		1
Slide Speed		0~166rpm
Maximum Rotary Quill Value		4000
Minimum Rotary Quill Value		1
Maximum Tool plate Value		360 °
Minimum Tool plate Value		0.1 °
Rotary Tool plate Speed		0~60rpm
Miximum O.D.		120mm
Maximum Leg Length		100mm
Motor	Wire Speed	7.0kw
	Slide	4.5kw
	Rotary Quill	1.2kw
	Rotary Wire	7.5kw
Power		380V/220V
Weight		4720kg
Dimensions	Length	2850mm
	Width	2110mm
	Height	2100mm
Software		586 Indusrial Grade Computer
Monitor		LCD
Axis Number		13 Axis Computer
Program Store		100 Page
Operation Screen		Windows Operator Display
